TECHNICAL TIPS

Electrical Safety

We are proud of our long history in electrical safety, and the experience that we offer our customers. When we inspect your equipment and apply our mark of approval, you can rest assured that your equipment is compliant with all the applicable electrical codes and standards.

The following collection of reference material is intended to give you a better understanding of some of the inspection procedures that might be applicable to your equipment. If you have any questions or would like more information, feel free to call or email us and we will be sure to provide you with Service Beyond Standard!

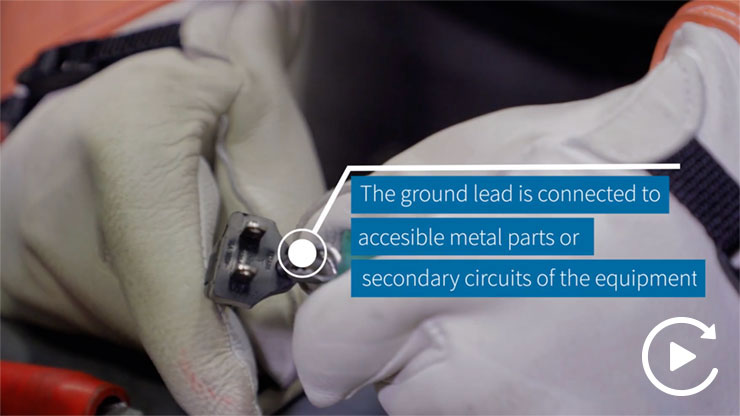

Dielectric Strength Test

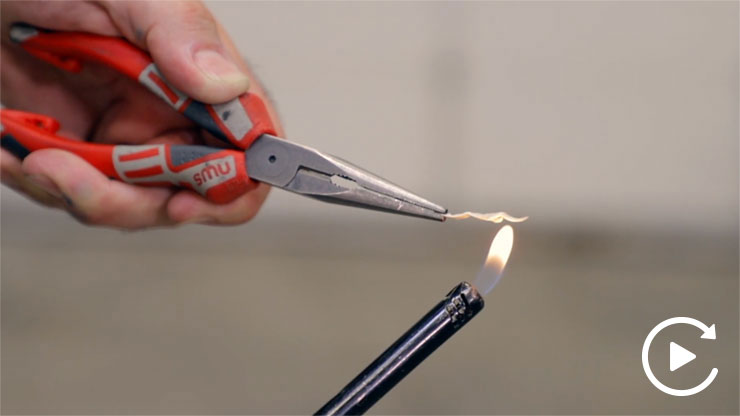

Flame Test

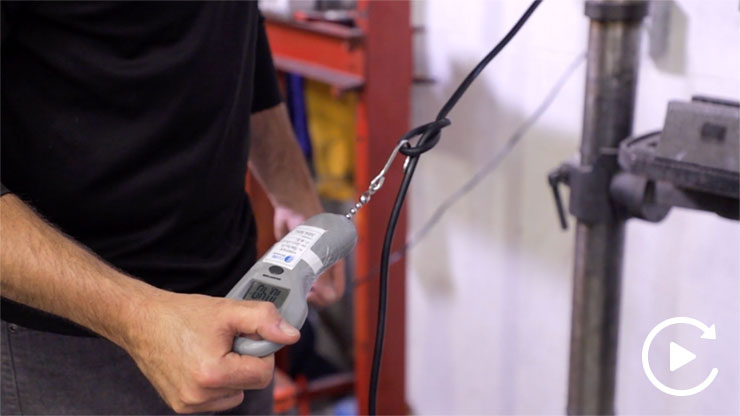

Strain Relief Test

Full Load Table

Logo
FULL LOAD CURRENTS
THREE PHASE TRANSFORMERS
VOLTAGE (Line to Line)
KVA
Rating
208 240 480 600 2400 4160
3 8.3 7.2 3.6 2.9 0.72 0.42
6 16.7 14.4 7.2 5.8 1.44 0.83
9 25 21.7 10.8 8.7 2.17 1.25
15 41.6 36 18 14.4 3.6 2.08
30 83 72 36 29 7.2 4.16
45 125 108 54 43 10.8 6.25
75 208 180 90 72 18 10.4
112.5 312 271 135 108 27 16
150 416 361 180 144 36 20.8
225 625 541 271 217 54 31.2
300 833 722 361 289 72 41.6
500 1388 1203 601 481 120 69.4
750 2082 1804 902 722 180 104
TRANSFORMER RATING
FOR MOTOR H.P
Motor HP .5 1 1.5 2 3 5 7.5 10 15 20 25
1 PH kVA 2 3 3 3 5 7.5 10 15 25 25 37.5
3 PH kVA 3 3 3 5 5 9 15 15 30 20
FOR OTHER KVA RAINGS
OR VOLTAGES
Three Phase Single Phase
Amperes= kVA x 10
Volts x 1.73
Amperes= kVA x 1000
Volts
FULL LOAD CURRENTS
THREE PHASE TRANSFORMERS
VOLTAGE
kVA
Rating
120 208 240 480 600 2400
1 8.33 4.8 4.17 2.08 1.7 0.42
3 25 14.4 12.5 6.25 5.0 1.25
5 42 24 20.8 10.4 8.3 2.08
7.5 62.5 36.1 31.3 15.6 12.5 3.13
10 83.3 48 41.7 20.8 16.7 4.17
15 125 72 62.5 31.3 25.0 3.25
25 208 120 104 52 41.7 10.4
37.5 313 180 156 78 62.5 15.6
50 417 240 208 104 83.3 20.8
75 625 361 313 156 125 31.3
100 833 481 417 208 167 41.7
125 1042 601 521 260 208 52
167 1392 803 696 348 278 70
200 1667 962 833 417 333 83
250 2083 1202 1042 521 417 104
333 2775 1601 1388 694 555 139
500 4167 2404 2083 1042 833 208
